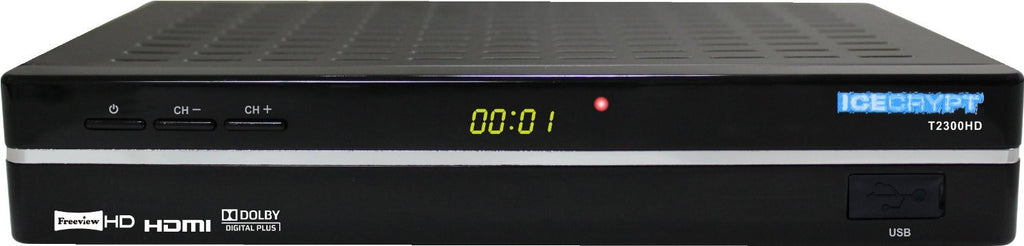

ICECRYPT T2300 Freeview HD Receiver

by Icecrypt
This product is not available

freeview hd high definition receiver set top box

The IceCrypt T2300 is a superb high definition Freeview HD set top box.

Features include Web Browser, Picasa, Google Maps, Samba, HbbTv

ICECRYPT T2300

Key Features:

  • Digital Freeview HD Receiver
  • Free HD channels from BBC, ITV and Channel 4
  • Up to 50 Digital TV channels and 24 Radio Stations
  • MHEG5 Red Button Interactive services
  • HDMI/HDCP supported (up to 1080P)
  • SCART and Antenna Loopthrough
  • Dolby Digital Plus support with S/PDIF
  • USB Port for File Playback (MP3, JPEG, XViD)
  • Ethernet with Web Browsing and HbbTV Portal Services
  • Software upgrade by USB and OAD
  • 32 Bit HD On Screen Display
  • Full Electronic Programme Guide (EPG)
  • Teletext, Subtitles and Audio Description supported
  • Favourite Channel groups and Parental lock features
  • Last Channel memory from Standby
  • MPEG-2/MPEG-4 Digital and Fully DVB-T/T2 compliant
  • Fully MPEG Licensed
  • Low power consumption - under 1w in standby
  • Plug-and-Play Installation

TUNER & CHANNEL

  • Tuner - DVB-T/DVB-T2
  • Input Connector - IEC 169-2,Female/Male
  • Frequency Range - 174-230MHz 470-862MHz
  • Aerial Supply - 5V, max 100mA
  • Carrier Mode - 1k, 2k, 4k, 8k, 16k and 32k
  • Constellation - QPSK, 16, 64, 128 and 256 QAM

DVB COMPLIANT A/V DECODING

  • Aspect Ratio - 4:3, 16:9 (Pan-and-Scan, Letterbox)
  • Video Resolution - 576i, 576p, 720p, 1080i, 1080p

FRONT

  • Display - 4 Digit 7 Segment LEDs
  • Buttons - Channel Up, Down, Standby
  • LEDs - Power, Standby

A/V & DATA IN/OUT

  • TV SCART - Video CVBS/RGB
  • HDMI - HD Video/Audio output
  • S/PDIF - DOLBY Digital Audio output
  • USB - USB 2.0 Host
  • Ethernet - RJ-45, 10/100 Base-T

icecrypt freeview hd box

POWER SUPPLY

  • Input Voltage - 90 - 250V AC, 50/60Hz
  • Type - SMPS
  • Power Consumption - Running Max 8W
  • Passive Standby under 1W

PHYSICAL SPECIFICATION

  • Size - 218 x 124 x 36mm
  • Weight(Net) - 0.5KG
  • Ean Code - 5060086981100

 Please click here to view the full information .pdf sheet about the Icecrypt T2300 Freeview HD Receiver
